Name: HK LINEAR-SUB-4000 2400 Watt 2 x 18" Passive Subwoofer
Brand: HK Audio
SKU: LINEAR-SUB-4000-U

Model: LINEAR-SUB-4000-U

UPC: 4039373020212

Please log in to see your price

List Price: $2,599.00

Description

Product features

Description:

LINEAR SUB 4000 is a powerful 18? dual vented bandpass subwoofer. It is compatible with all LINEAR 5 full-range speakers and mid/high units and delivers an impressively powerful low-frequency response from 30 to 100 Hertz. The subwoofer is the recommended extension to the LINEAR 5 LTS long-throw powerhouse. It can be used as a subwoofer extension to the existing LINEAR SUB 2000, delivering powerful low bass with optional frequency separation. Filter presets for Lab.Gruppen IPD and PLM 12K44 controllers are available.

Power-handling nominal (RMS): 1200 W

Power-handling, program: 2400 W

Frequency response +/-3 dB: 39 Hz – X-over

Frequency response -10 dB: 31 Hz – X-over

Sensitivity 1 W @ 1 m: 106 dB half space

Max. SPL @ 10% THD 135 dB half space

Max. SPL peak @ 10% THD: 137 dB half space

Electrical impedance: 4 ohms

Low-/mid speaker: 1x 18", 4" voice coil featuring advanced ventilated voice coil gap

Crossover frequency: 100 Hz, active X-over with controller amp (can be set lower when used as a sub-low)

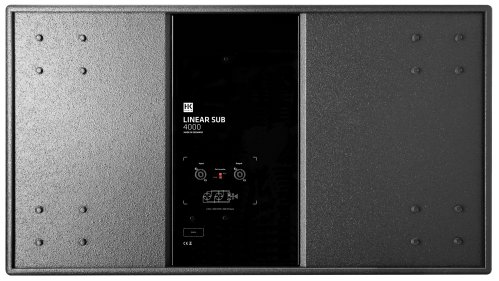

Connections: 2x Speakon NL4, pin assignment switchable between 1+/1- and 2+/2-

Integrated pole mount: 2x M20
