High-efficiency 2300W Class-D amplifier offers ample headroom for professional applications
Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications
Advanced Impulse™ DSP module
Precision crossovers and transducer time-alignment deliver reference quality sound that is consistent throughout the frequency range
Cutting-edge FIR Filtering technology drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal clear sound
DRM Control Dashboard™ features a high-contrast full color display for easy single-knob access to configuration, processing, and more
View current EQ and voicing mode, high-resolution metering, and more from a single overview window
Application and venue specific modes provide easy to use voicing with minimal setup time. Available modes: Live, Club, and Speech plus independent Sub option w/variable crossover
Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
Alignment Delay control for delay stacks
Save and recall up to 6 user presets for various applications and venues
Screensaver plus dimmer and contrast control
System lock with 4-digit passcode

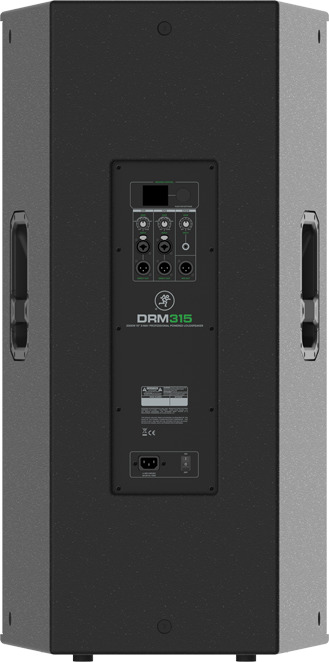

Dual independent inputs that support mic, line, and instrument signals plus a dedicated 1/8” stereo aux input
Premium components and cabinet design
Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance with a touring-grade textured coating and powder-coated heavy gauge steel grille
Unique ported design provides exceptionally smooth yet punchy low frequency response while providing forced-air cooling directly to the internal amplifier
Rotatable waveguide assembly allows for flown horizontal orientation while maintaining maximum coverage
1.4” Titanium diaphragm compression driver is perfectly matched to the amplifier for maximum clarity and efficiency
6.5” Midrange transducer provides incredible midrange clarity for punchy vocal and instrument reproduction
15” High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
Versatile configuration options
Pole-mount allows for easy mounting on top of a DRM18S subwoofer
Flyable – 12xM10 flypoints for horizontal or vertical orientation
Max SPL: 137 dB
67.7 lb / 30.72 kg
