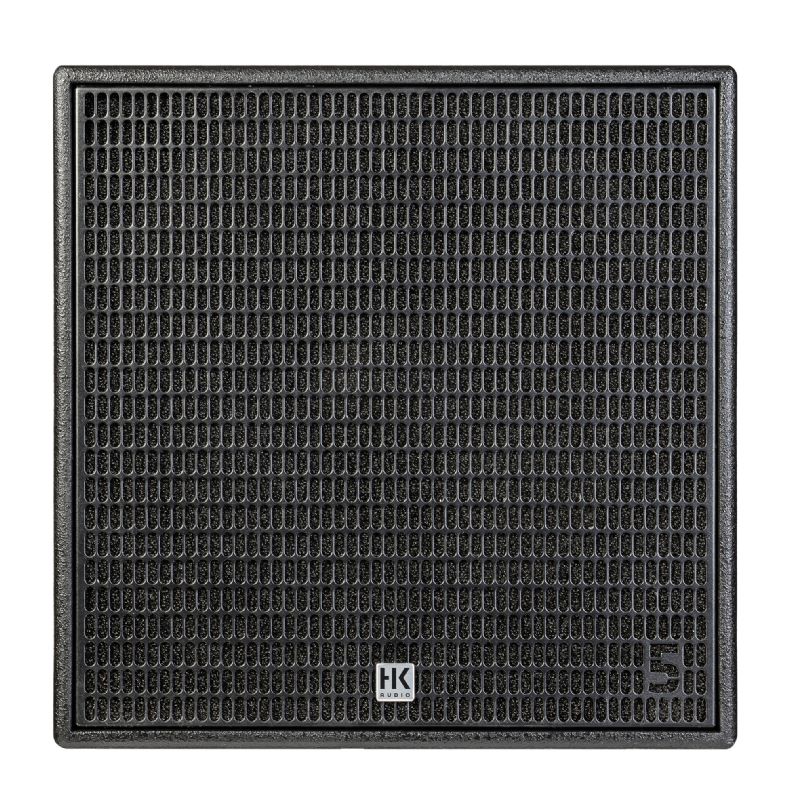

Birch multiplex bass reflex subwoofer with more sound pressure

• Max. SPL @ 10 % THD: 129 dB half space (42 Hz – 100 Hz averaged)
• Max. SPL Peak @ 10 % THD: 131 dB half space
• Frequency response +/-3 dB: 42 Hz – X-over
• Frequency response -10 dB: 38 Hz – X-over
• Power amp output (RMS/Peak): 1,000 / 2,000 W
• Amplifier type: Class D
• Woofer: 1 x 18", 4" voice coil
• Maximum input level: 20 dBu
• Analogue inputs: 2 x XLR combo balanced
• Analogue Thru: 2 x XLR balanced
• DSP Out: 1 x XLR balanced
• Network port: EtherCON RJ45, 1 x In, 1 x Thru
• Filter presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate: 48 kHz
• System latency: Less than 2 ms
• Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
• Power consumption: 1.9 A / 100–240 V nominal according to EN 62368-1
• Pole mount: 1 x M20
• Carrying handles: 2 x MultiGrip
• Housing: Birch multiplex
• Surface: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 55 x 56 x 68.5 cm 21-21/32 x 22-3/64 x 26-31/32"
• Weight: 41.6 kg / 91.71 lbs
