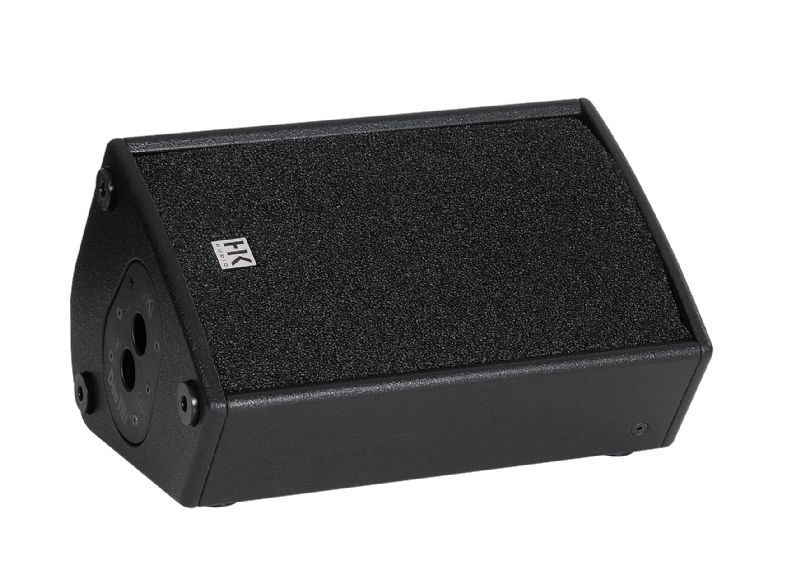

This remarkably versatile 10?/1? enclosure can serve as a satellite, a fullrange cabinet, and a low-profile wedge monitor (30°). Its finely balanced and therefore feedback-resistant frequency response suits the given application.

• Power-handling nominal (RMS): 300 W
• Power-handling, program: 600 W
• Power-handling, peak: 1200 W
• Nominal impedance: 8 ohms
• Max SPL: 126 dB half space (@10% THD)
• Sensitivity 1W/1m: 99 dB half space
• Frequency response +/- 3 dB: 95 Hz - 19 kHz
• Frequency response -10 dB: 80 Hz - 19 kHz
• Low/Mid Speaker: 1x 10"
• HF Driver: 1"
• HF horn: 90° x 60° CD horn
• HF protection (passive): Dyn. protective circuit
• Crossover frequency: 2.2 kHz, 12 dB/oct.
• Connections: 2x Speakon NL4
• Angles up: 35°
• Pole mount: DuoTilt 3/7
• Rigging points: 3x M8
• Handles: 1, integrated
• Enclosure: MDF
• Grille: Metal grille with black acoustic foam
• Finish: Acrylic enamel, black
• Optional accessories: Protective cover, Satellite Add-On M20, Adjustable pole M20
• Dimensions (WxHxD): 32 x 48.5 x 30 cm
• Weight: 12.5 kg / 2.6 lbs
