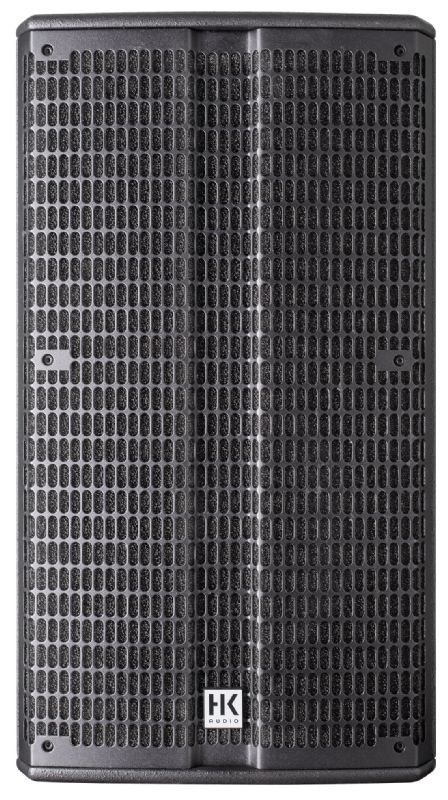

12?/1? model in a multifunctional housing with exceptional maximum sound pressure (135dB max. SPL peak) in combination with the Linear Sub 2000 for system applications. The LINEAR 5 112 X is also ideally suited as a monitor with plenty of gain before feedback; the rotatable 60° x 40° CD horn produces exemplary dispersion.

• Power-handling nominal (RMS): 500 W
• Power-handling, program: 1000 W
• Frequency response +/-3 dB: 100 Hz – 18 kHz
• Frequency response -10 dB: 72 Hz – 19 kHz
• Sensitivity 1 W @ 1 m: 104 dB half space
• Max. SPL @ 10% THD: 130 dB half space (100 Hz – 12 kHz average)
• Max. SPL Peak @ 10% THD: 135 dB half space
• Electrical impedance: 8 ohms
• Protective circuits: PTC circuit
• Low-/mid speaker: 1x 12", 2.5" voice coil
• HF Driver: 1", 1.75" voice coil
• Directivity: 60° x 40°, rotatable CD horn
• Crossover frequency: 1.7 kHz, 12 dB/Oct.
• Connections: 2x Speakon NL4
• Angles up: 33°
• Pole mount: DuoTilt 3°/7°
• Rigging points: 3x M8 (AP-8)
• Carrying handles: 1x SingleGrip, 1x MultiGrip
• Housing: Hybrid (birch multiplex/MDF)
• Finish: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 37 x 67 x 30 cm 14-9/16 x 26-19/64 x 11-13/16"
• Weight: 19.5 kg / 43 lbs
